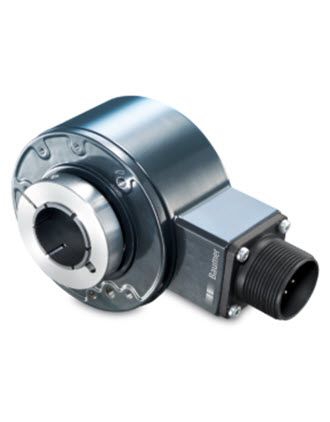

HS35F Baumer
Insulated through hollow shaft ø0.375...1 inch
-
Robust industrial encoder up to IP 67 protection
-
Shock resistant up to 200 g's
-
Insulating insert to prevent high shaft currents from damaging bearings
-
Wide range voltage supply 4.75...30 VDC
-
Precision ≤60 arc-seconds for perfect process control
-
Max. 80000 pulses per revolution
Technical data - electrical ratings
- Voltage supply
-
- 4.75...30 VDC
- Reverse polarity protection
-
- Yes
- Consumption w/o load
-
- ≤40 mA (24 VDC)
- ≤130 mA (4.75 VDC) + output load, max. 250 mA
- Pulses per revolution
-
- 1024 … 80000
- Accuracy
-
- ≤60 arc-seconds
- Sensing method
-
- Optical
- Output frequency
-
- ≤300 kHz (TTL)
- ≤160 kHz (HTL)
- ≤160 kHz (OC)
- Output signals
-
- A, B, Z
- A, B, Z + complement, ½ cycle index gated with negative B channel
- Output stages
-
- Linedriver (TTL, 7272) Vout = 5 V, short-circuit proof
- Push-pull (HTL, 7272) Vout = Vin, short-circuit proof
- Open Collector (OC, 7273) Vout = Vin, short-circuit proof
- Interference immunity
-
- DIN EN 61000-6-2
- Emitted interference
-
- DIN EN 61000-6-3
- Approval
-
- UL approval / file no. E240061
- RoHS compliant EU guideline 2011/65/EC
- CE
