The incremental HeavyDuty standard
HOG86 / POG86
- Blind hollow shaft, cone shaft and solid shaft
- 500 ... 5000 ppr
- Operating temperature -40 ... +100 °C
- Particularly cost-efficient E -series
- Redundant sensing
- Twin encoder combination
- Integrated digital DSL speed switch
- Combined with mechanical FSL speed switch
- EMS function monitoring for maximum system uptime
- ATEX II 3G/3D for use in zones 2/22
Unmatched variety, proven robustness
HOG9 / POG9
- Blind hollow shaft, cone shaft and solid shaft
- 300 … 10 000 ppr
- Operating temperature -30 ... +100 °C
- Twin encoder combination
- Variants with extremely short mounting depth
- EMS function monitoring for maximum system uptime
- ATEX II 3G/3D for use in zones 2/22
- ATEX / IECEx II 2G for use in zone 1
The unrivalled benchmark
HOG10 / POG10
- Blind hollow, cone and solid shaft
- 300 … 10 000 ppr / 720 … 5000 sine periods
- Operating temperature -40 … +100 °C
- Hybrid bearings, corrosion protection C5-M
- Redundant sensing, twin encoder combination
- EMS function monitoring for maximum system uptime
- ATEX II 3G/3D for use in zones 2/22
- Optional heating for operating temperatures down to -50 °C
- Optional integrated earthing brushes
SinCos output – LowHarmonics for outstanding signal quality
OGS71 ... HOGS151
- SinCos output signals 1 Vpp
- Negligible harmonic content thanks to LowHarmonics technology
- Blind hollow shaft, cone shaft and solid shaft

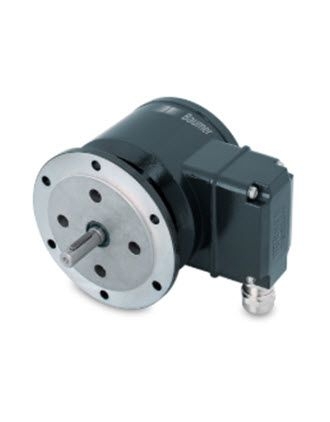

Solid shaft with EURO flange B10
- The HeavyDuty standard in solid shaft encoders
- Design 115 mm
- Solid shaft ø11 mm with EURO flange B10
- The broadest portfolio of HeavyDuty encoders
Complete portfolio of solid shaft designs
- Designs 58 to 120 mm
- Solid shafts ø6 ... 11 mm
- Square wave and SinCos output signals
Large hollow shafts >20 mm to 150 mm
- Encoders with integral bearings for large drive shafts
- Bearingless encoders in hollow shaft design up to 3000 mm diameter see under bearingless encoders
Complete portfolio of hollow shaft designs
- Designs 58 to 287 mm
- Hollow shaft ø8 ... 150 mm
- Square wave and SinCos output signals
- Cost-efficient and reliable installation
- Broad accessory range
For Ex areas
- ATEX II 3G/3D for use in zones 2/22
- ATEX II 2G for use in zone 1
- Variants with IECEx certificate
For corrosive environment
- Corrosion resistance C4 and C5-M
- DNV certified variants
- Offshore capable and saltwater proof
- Tropics-compatible variants on request
- Integrated heating for operation at temperatures down to -55 °C on request
For highspeed applications – optical technology without integral bearings
- Operating speed up to 30 000 rpm
- Hollow shaft up to Ø120 mm
- No self-heating by bearing friction
HeavyDuty encoders for use in functional safety
- PLd / SIL2 certification compliant to EN 13849 and EN 62061
- LowHarmonics technology for excellent SinCos signal quality
