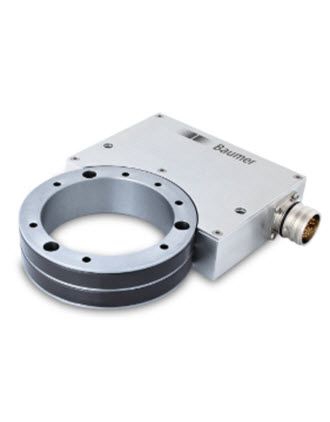

Bộ mã hóa vòng quay (Bearingless Encoders)

Product name	Shaft type	Steps per revolution	Pulses per revolution	Output stages
EAM360-K - CANopen® - MAGRES	ø6 mm (magnet bore) ø8 mm (magnet bore) ø12 mm (magnet bore)	≤16384 / 14 bit		CAN-Bus, LV (3.3 V) compatible ISO 11898 Incremental: linedriver RS422 or push-pull (option)
EAM360-K - SSI - MAGRES	ø6 mm (magnet bore) ø8 mm (magnet bore) ø12 mm (magnet bore)	≤16384 / 14 bit		SSI data: Linedriver RS422 Incremental: linedriver RS422 or push-pull (option)
EAM360R-K - analog - MAGRES	ø6 mm (magnet bore) ø8 mm (magnet bore) ø12 mm (magnet bore)
EAM360R-K - CANopen®/SAE J1939 - MAGRES	ø6 mm (magnet bore) ø8 mm (magnet bore) ø12 mm (magnet bore)	≤16384 / 14 bit		CAN-Bus, LV (3.3 V) compatible ISO 11898
EAM500 analog	ø6 mm (magnet rotor bore) M7 screw
EAM500 CANopen®	ø6 mm (magnet rotor bore) M7 screw	≤16384 / 14 bit		CAN-Bus, LV (3.3 V) compatible ISO 11898
EAM580-K - CANopen® - MAGRES	ø6 mm (magnet bore) ø8 mm (magnet bore) ø12 mm (magnet bore)	≤16384 / 14 bit		CAN-Bus, LV (3.3 V) compatible ISO 11898 Incremental: linedriver RS422 or push-pull (option)
EAM580-K - PROFINET - MAGRES	ø6 mm (magnet bore) ø8 mm (magnet bore) ø12 mm (magnet bore)	≤16384 / 14 bit
EAM580-K - SSI - MAGRES	ø6 mm (magnet bore) ø8 mm (magnet bore) ø12 mm (magnet bore)	≤16384 / 14 bit		SSI data: Linedriver RS422 Incremental: linedriver RS422 or push-pull (option)
EAM580R-K - analog - MAGRES	ø6 mm (magnet bore) ø8 mm (magnet bore) ø12 mm (magnet bore)
EAM580R-K - CANopen®/SAE J1939 - MAGRES	ø6 mm (magnet bore) ø8 mm (magnet bore) ø12 mm (magnet bore)	≤16384 / 14 bit		CAN-Bus, LV (3.3 V) compatible ISO 11898
MDFK 08 - push-pull	ø6...43.5 mm (through hollow shaft)		256 … 1024	Push-pull short-circuit proof
MDFK 08 - RS422	ø6...43.5 mm (through hollow shaft)		256 … 1024	RS422
MHAD 50 - HDmag	ø30 mm (through hollow shaft)
MHAP 100 - HDmag	ø16...80 mm (through hollow shaft)
MIL10				HTL/push-pull TTL/RS422
MIR10	ø6...43.5 mm (through hollow shaft)		320 … 4096	HTL/push-pull TTL/RS422
ITD 75 A 4	ø60...85 mm (through hollow shaft)		1000 … 2500	TTL linedriver (short-circuit proof) HTL push-pull (short-circuit proof)
ITD49H00 - Rectangular signal Article no.: 96003302	ø8...28 mm (through hollow shaft)		64 … 2048	TTL linedriver (short-circuit proof) HTL push-pull (short-circuit proof)
ITD49H00 - Sine signal Article no.: 96003302	ø8...28 mm (through hollow shaft)			SinCos 1 Vpp
ITD69H00 - Rectangular signal Article no.: 96003302	ø40...65 mm (through hollow shaft)		128 … 4096	TTL linedriver (short-circuit proof) HTL push-pull (short-circuit proof)
ITD69H00 - Sine signal Article no.: 96003302	ø40...65 mm (through hollow shaft)			SinCos 1 Vpp
ITD69H02 - Rectangular signal	ø40...68 mm (through hollow shaft)		128 … 4096	TTL linedriver (short-circuit proof) HTL push-pull (short-circuit proof)
ITD69H02 - Sine signal	ø40...68 mm (through hollow shaft)			SinCos 1 Vpp
ITD89H00 - Rectangular signal Article no.: 96003302	ø70...140 mm (through hollow shaft)		256 … 8192	TTL linedriver (short-circuit proof) HTL push-pull (short-circuit proof)
ITD89H00 - Sine signal Article no.: 96003302	ø70...140 mm (through hollow shaft)			SinCos 1 Vpp
BMMK 58 flexible - MAGRES	ø12 mm (magnet bore)	≤4096 / 12 bit
BMSK 58 flexible - MAGRES	ø12 mm (magnet bore)	≤4096 / 12 bit
MHAP 200 - HDmag	ø50...180 mm (through hollow shaft)
MHAP 400 - HDmag	ø70...340 mm (through hollow shaft)
MHGE 100 - HDmag	ø16...80 mm (through hollow shaft)
MHGE 200 - HDmag	ø50...180 mm (through hollow shaft)
MHGE 400 - HDmag	ø70...340 mm (through hollow shaft)
MHGE 800 - HDmag	ø650...740 mm (through hollow shaft)
MHGP 100 - HDmag	ø16...80 mm (through hollow shaft)
MHGP 200 - HDmag	ø50...180 mm (through hollow shaft)
MHGP 400 - HDmag	ø70...340 mm (through hollow shaft)
MIR 3000F - HDmag flex	ø300...3183 mm (through hollow shaft)
MQR 3000F - HDmag flex	ø300...3183 mm (through hollow shaft)
HG 16	ø20...45 mm (through hollow shaft)		250 … 2048	HTL TTL/RS422
HG 18	ø65...85 mm (through hollow shaft)		250 … 2500	HTL TTL/RS422
HG 21	ø85...95 mm (through hollow shaft)		2500	HTL TTL/RS422
HG 211	ø85...95 mm (through hollow shaft)		2500	HTL TTL/RS422
HG 22	ø90...120 mm (through hollow shaft)		720 … 4000	HTL TTL/RS422
HG 6	ø12...16 mm (blind hollow shaft)		100 … 512	HTL TTL/RS422
ITD 27 A 4 Y27	ø10...16 mm (blind hollow shaft)		1 … 32	Push-pull short-circuit proof
ITD 67 A 4 Y 9	ø10...45 mm (through hollow shaft)		20 … 50	Push-pull
