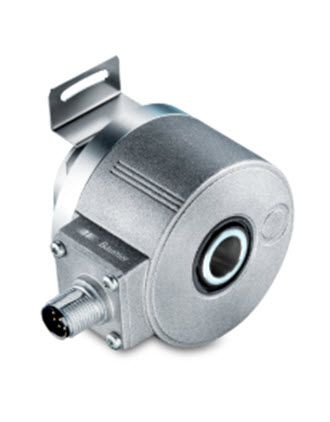

Motorfeedback encoder
58 mm absolute SSI / BiSS C – stator coupling
| Size (flange) | Shaft type | Steps per revolution | Pulses per revolution | Interface | Output stages |
|---|---|---|---|---|---|
| EFL580 - BiSS C |
ø58 mm |
ø9.25 mm cone shaft (1:10) |
8192 / 13 bit |
|
BiSS C SinCos |
| EFL580 - SSI |
ø58 mm |
ø9.25 mm cone shaft (1:10) |
8192 / 13 bit |
|
SSI SinCos |
EFL580 - BiSS C
Cone shaft
- Encoder singleturn / BiSS C
- Optical sensing method
- Resolution: singleturn 13 bit
- Additional incremental signals 2048 sine periods
- Cone shaft
- Operating temperature max. +105 °C
EFL580 - SSI
Cone shaft
- Encoder singleturn / SSI
- Optical sensing method
- Resolution: singleturn 13 bit
- Additional incremental signals 2048 sine periods
- Cone shaft
- Operating temperature max. +105 °C
