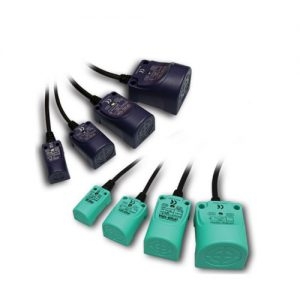

CẢM BIẾN TỪ -PROXIMITY SENSOR
DÒNG SẢN PHẨM UP – Dạng vuông
Kích thước: 18mm
D = 8mm ǁ NPN – NO ǁ 12 ~ 24VDC
Hanyoung UP - Dạng vuông
| SKU | Kích thước | Khoảng cách | Tín hiệu ngõ ra | Điện áp |
|---|---|---|---|---|
| UP12S-4NA | 12mm | 4mm | NO, NPN | 12-24V |
| UP12S-4PA | 12mm | 4mm | NO, PNP | 12-24V |
| UP12S-4NC | 12mm | 4mm | NC, NPN | 12-24V |
| UP12S-4PC | 12mm | 4mm | NC, PNP | 12-24V |
| UP12S-4TA | 12mm | 4mm | NO | 12-24V |
| UP12S-4TC | 12mm | 4mm | NC | 12-24V |
| UP18S-5NA | 18mm | 5mm | NO, NPN | 12-24V |
| UP18S-5PA | 18mm | 5mm | NO, PNP | 12-24V |
| UP18S-5NC | 18mm | 5mm | NC, NPN | 12-24V |
| UP18S-5PC | 18mm | 5mm | NC, PNP | 12-24V |
| UP18S-5TA | 18mm | 5mm | NO | 12-24V |
| UP18S-5TC | 18mm | 5mm | NC | 12-24V |
| UP18S-8NA | 18mm | 8mm | NO, NPN | 12-24V |
| UP18S-8PA | 18mm | 8mm | NO, PNP | 12-24V |
| UP18S-8NC | 18mm | 8mm | NC, NPN | 12-24V |
| UP18S-8PC | 18mm | 8mm | NC, PNP | 12-24V |
| UP18S-8TA | 18mm | 8mm | NO | 12-24V |
| UP18S-8TC | 18mm | 8mm | NC | 12-24V |
| UP25S-5NA | 25mm | 5mm | NO, NPN | 12-24V |
| UP25S-5PA | 25mm | 5mm | NO, PNP | 12-24V |
| UP25S-5NC | 25mm | 5mm | NC, NPN | 12-24V |
| UP25S-5PC | 25mm | 5mm | NC, PNP | 12-24V |
| UP25S-5TA | 25mm | 5mm | NO | 12-24V |
| UP25S-5TC | 25mm | 5mm | NC | 12-24V |
| UP25S-5AA | 25mm | 5mm | NO | 110-220V |
| UP25S-5AC | 25mm | 5mm | NC | 110-220V |
| UP25S-8NA | 25mm | 8mm | NO, NPN | 12-24V |
| UP25S-8PA | 25mm | 8mm | NO, PNP | 12-24V |
| UP25S-8NC | 25mm | 8mm | NC, NPN | 12-24V |
| UP25S-8PC | 25mm | 8mm | NC, PNP | 12-24V |
| UP25S-8TA | 25mm | 8mm | NO | 12-24V |
| UP25S-8TC | 25mm | 8mm | NC | 12-24V |
| UP25S-8AA | 25mm | 8mm | NO | 110-220V |
| UP25S-8AC | 25mm | 8mm | NC | 110-220V |
| UP25S-12NA | 25mm | 12mm | NO, NPN | 12-24V |
| UP25S-12PA | 25mm | 12mm | NO, PNP | 12-24V |
| UP25S-12NC | 25mm | 12mm | NC, NPN | 12-24V |
| UP25S-12PC | 25mm | 12mm | NC, PNP | 12-24V |
| UP25S-12TA | 25mm | 12mm | NO | 12-24V |
| UP25S-12TC | 25mm | 12mm | NC | 12-24V |
| UP30S-10NA | 30mm | 10mm | NO, NPN | 12-24V |
| UP30S-10PA | 30mm | 10mm | NO, PNP | 12-24V |
| UP30S-10NC | 30mm | 10mm | NC, NPN | 12-24V |
| UP30S-10PC | 30mm | 10mm | NC, PNP | 12-24V |
| UP30S-10TA | 30mm | 10mm | NO | 12-24V |
| UP30S-10TC | 30mm | 10mm | NC | 12-24V |
| UP30S-10AA | 30mm | 10mm | NO | 110-220V |
| UP30S-10AC | 30mm | 10mm | NC | 110-220V |
| UP30S-15NA | 30mm | 15mm | NO, NPN | 12-24V |
| UP30S-15PA | 30mm | 15mm | NO, PNP | 12-24V |
| UP30S-15NC | 30mm | 15mm | NC, NPN | 12-24V |
| UP30S-15PC | 30mm | 15mm | NC, PNP | 12-24V |
| UP30S-15TA | 30mm | 15mm | NO | 12-24V |
| UP30S-15TC | 30mm | 15mm | NC | 12-24V |
| UP30S-15AA | 30mm | 15mm | NO | 110-220V |
| UP30S-15AC | 30mm | 15mm | NC | 110-220V |
| UP40S-20NA | 40mm | 20mm | NO, NPN | 12-24V |
| UP40S-20PA | 40mm | 20mm | NO, PNP | 12-24V |
| UP40S-20NC | 40mm | 20mm | NC, NPN | 12-24V |
| UP40S-20PC | 40mm | 20mm | NC, PNP | 12-24V |
| UP40S-20TA | 40mm | 20mm | NO | 12-24V |
| UP40S-20TC | 40mm | 20mm | NC | 12-24V |
| UP40S-20AA | 40mm | 20mm | NO | 110-220V |
| UP40S-20AC | 40mm | 20mm | NC | 110-220V |
