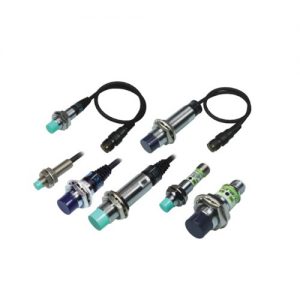

CẢM BIẾN TIỆM CẬN -PROXIMITY SENSOR
DÒNG SẢN PHẨM UP – Dạng tròn
M18 (Thân ngắn) None Shield
D = 8mm ǁ NPN – NO ǁ 12 ~ 24VDC
| SKU | Đường kính | Khoảng cách phát hiện | Tiếp điểm | Điện áp |
|---|---|---|---|---|
| UP08RM-1.5NA | 8mm | 1.5mm | NO, NPN | 12-24V |
| UP08RM-1.5PA | 8mm | 1.5mm | NO, PNP | 12-24V |
| UP08RM-1.5NC | 8mm | 1.5mm | NC, NPN | 12-24V |
| UP08RM-1.5PC | 8mm | 1.5mm | NC, PNP | 12-24V |
| UP08RM-1.5TA | 8mm | 1.5mm | NO | 12-24V |
| UP08RM-1.5TC | 8mm | 1.5mm | NC | 12-24V |
| UP08RD-2NA | 8mm | 2mm | NO, NPN | 12-24V |
| UP08RD-2PA | 8mm | 2mm | NO, PNP | 12-24V |
| UP08RD-2NC | 8mm | 2mm | NC, NPN | 12-24V |
| UP08RD-2PC | 8mm | 2mm | NC, PNP | 12-24V |
| UP08RD-2TA | 8mm | 2mm | NO | 12-24V |
| UP08RD-2TC | 8mm | 2mm | NC | 12-24V |
| UP12RM-2NA | 12mm | 2mm | NO, NPN | 12-24V |
| UP12RM-2PA | 12mm | 2mm | NO, PNP | 12-24V |
| UP12RM-2NC | 12mm | 2mm | NC, NPN | 12-24V |
| UP12RM-2PC | 12mm | 2mm | NC, PNP | 12-24V |
| UP12RM-2TA | 12mm | 2mm | NO | 12-24V |
| UP12RM-2TC | 12mm | 2mm | NC | 12-24V |
| UP12RM-2AA | 12mm | 2mm | NO | 110-220V |
| UP12RM-2AC | 12mm | 2mm | NC | 110-220V |
| UP12RD-4NA | 12mm | 4mm | NO, NPN | 12-24V |
| UP12RD-4PA | 12mm | 4mm | NO, PNP | 12-24V |
| UP12RD-4NC | 12mm | 4mm | NC, NPN | 12-24V |
| UP12RD-4PC | 12mm | 4mm | NC, PNP | 12-24V |
| UP12RD-4TA | 12mm | 4mm | NO | 12-24V |
| UP12RD-4TC | 12mm | 4mm | NC | 12-24V |
| UP12RD-4AA | 12mm | 4mm | NO | 110-220V |
| UP12RD-4AC | 12mm | 4mm | NC | 110-220V |
| UP18RM-5NA | 18mm | 5mm | NO, NPN | 12-24V |
| UP18RM-5PA | 18mm | 5mm | NO, PNP | 12-24V |
| UP18RM-5NC | 18mm | 5mm | NC, NPN | 12-24V |
| UP18RM-5PC | 18mm | 5mm | NC, PNP | 12-24V |
| UP18RM-5TA | 18mm | 5mm | NO | 12-24V |
| UP18RM-5TC | 18mm | 5mm | NC | 12-24V |
| UP18RM-5AA | 18mm | 5mm | NO | 110-220V |
| UP18RM-5AC | 18mm | 5mm | NC | 110-220V |
| UP18RD-8NA | 18mm | 8mm | NO, NPN | 12-24V |
| UP18RD-8PA | 18mm | 8mm | NO, PNP | 12-24V |
| UP18RD-8NC | 18mm | 8mm | NC, NPN | 12-24V |
| UP18RD-8PC | 18mm | 8mm | NC, PNP | 12-24V |
| UP18RD-8TA | 18mm | 8mm | NO | 12-24V |
| UP18RD-8TC | 18mm | 8mm | NC | 12-24V |
| UP18RD-8AA | 18mm | 8mm | NO | 110-220V |
| UP18RD-8AC | 18mm | 8mm | NC | 110-220V |
| UP30RM-10NA | 30mm | 10mm | NO, NPN | 12-24V |
| UP30RM-10PA | 30mm | 10mm | NO, PNP | 12-24V |
| UP30RM-10NC | 30mm | 10mm | NC, NPN | 12-24V |
| UP30RM-10PC | 30mm | 10mm | NC, PNP | 12-24V |
| UP30RM-10TA | 30mm | 10mm | NO | 12-24V |
| UP30RM-10TC | 30mm | 10mm | NC | 12-24V |
| UP30RM-10AA | 30mm | 10mm | NO | 110-220V |
| UP30RM-10AC | 30mm | 10mm | NC | 110-220V |
| UP30RD-15NA | 30mm | 15mm | NO, NPN | 12-24V |
| UP30RD-15PA | 30mm | 15mm | NO, PNP | 12-24V |
| UP30RD-15NC | 30mm | 15mm | NC, NPN | 12-24V |
| UP30RD-15PC | 30mm | 15mm | NC, PNP | 12-24V |
| UP30RD-15TA | 30mm | 15mm | NO | 12-24V |
| UP30RD-15TC | 30mm | 15mm | NC | 12-24V |
| UP30RD-15AA | 30mm | 15mm | NO | 110-220V |
| UP30RD-15AC | 30mm | 15mm | NC | 110-220V |
| UP18RLM-5NA | 18mm | 5mm | NO, NPN | 12-24V |
| UP18RLM-5PA | 18mm | 5mm | NO, PNP | 12-24V |
| UP18RLM-5NC | 18mm | 5mm | NC, NPN | 12-24V |
| UP18RLM-5PC | 18mm | 5mm | NC, PNP | 12-24V |
| UP18RLM-5TA | 18mm | 5mm | NO | 12-24V |
| UP18RLM-5TC | 18mm | 5mm | NC | 12-24V |
| UP18RLM-5AA | 18mm | 5mm | NO | 110-220V |
| UP18RLM-5AC | 18mm | 5mm | NC | 110-220V |
| UP18RLD-8NA | 18mm | 8mm | NO, NPN | 12-24V |
| UP18RLD-8PA | 18mm | 8mm | NO, PNP | 12-24V |
| UP18RLD-8NC | 18mm | 8mm | NC, NPN | 12-24V |
| UP18RLD-8PC | 18mm | 8mm | NC, PNP | 12-24V |
| UP18RLD-8TA | 18mm | 8mm | NO | 12-24V |
| UP18RLD-8TC | 18mm | 8mm | NC | 12-24V |
| UP18RLD-8AA | 18mm | 8mm | NO | 110-220V |
| UP18RLD-8AC | 18mm | 8mm | NC | 110-220V |
| UP30RLM-10NA | 30mm | 10mm | NO, NPN | 12-24V |
| UP30RLM-10PA | 30mm | 10mm | NO, PNP | 12-24V |
| UP30RLM-10NC | 30mm | 10mm | NC, NPN | 12-24V |
| UP30RLM-10PC | 30mm | 10mm | NC, PNP | 12-24V |
| UP30RLM-10TA | 30mm | 10mm | NO | 12-24V |
| UP30RLM-10TC | 30mm | 10mm | NC | 12-24V |
| UP30RLM-10AA | 30mm | 10mm | NO | 110-220V |
| UP30RLM-10AC | 30mm | 10mm | NC | 110-220V |
| UP30RLD-15NA | 30mm | 15mm | NO, NPN | 12-24V |
| UP30RLD-15PA | 30mm | 15mm | NO, PNP | 12-24V |
| UP30RLD-15NC | 30mm | 15mm | NC, NPN | 12-24V |
| UP30RLD-15PC | 30mm | 15mm | NC, PNP | 12-24V |
| UP30RLD-15TA | 30mm | 15mm | NO | 12-24V |
| UP30RLD-15TC | 30mm | 15mm | NC | 12-24V |
| UP30RLD-15AA | 30mm | 15mm | NO | 110-220V |
| UP30RLD-15AC | 30mm | 15mm | NC | 110-220V |
