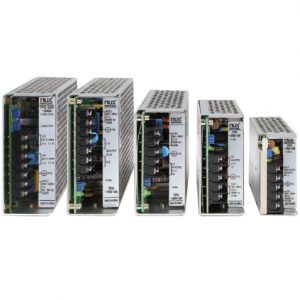

Hanyoung TPS -Series
Bộ nguồn DÒNG SẢN PHẨM TPS
Kích thước: 93x209x65
Input:100~240Vac ǁ Out: 350W/ 24VDC
| Mã sản phẩm | Kích thước | Điện áp ngõ vào | Điện áp ngõ ra | Công suất |
|---|---|---|---|---|
| TPS-15S-05 | 64x85x32mm | 100-240Vac | 15W | 5VDC |
| TPS-30S-05 | 79x87x37mm | 100-240Vac | 30W | 5VDC |
| TPS-50S-05 | 83x104x40mm | 100-240Vac | 50W | 5VDC |
| TPS-75S-05 | 96x135x40mm | 100-240Vac | 75W | 5VDC |
| TPS-100S-05 | 93x199x50mm | 100-240Vac | 100W | 5VDC |
| TPS-150S-05 | 93x209x65mm | 100-240Vac | 150W | 5VDC |
| TPS-15S-12 | 64x85x32mm | 100-240Vac | 15W | 12VDC |
| TPS-30S-12 | 79x87x37mm | 100-240Vac | 30W | 12VDC |
| TPS-50S-12 | 83x104x40mm | 100-240Vac | 50W | 12VDC |
| TPS-75S-12 | 96x135x40mm | 100-240Vac | 75W | 12VDC |
| TPS-100S-12 | 93x199x50mm | 100-240Vac | 100W | 12VDC |
| TPS-150S-12 | 93x209x65mm | 100-240Vac | 150W | 12VDC |
| TPS-220S-12 | 93x209x65mm | 100-240Vac | 220W | 12VDC |
| TPS-350S-12 | 93x209x65mm | 100-240Vac | 350W | 12VDC |
| TPS-15S-15 | 64x85x32mm | 100-240Vac | 15W | 15VDC |
| TPS-30S-15 | 79x87x37mm | 100-240Vac | 30W | 15VDC |
| TPS-50S-15 | 83x104x40mm | 100-240Vac | 50W | 15VDC |
| TPS-75S-15 | 96x135x40mm | 100-240Vac | 75W | 15VDC |
| TPS-100S-15 | 93x199x50mm | 100-240Vac | 100W | 15VDC |
| TPS-150S-15 | 93x209x65mm | 100-240Vac | 150W | 15VDC |
| TPS-220S-15 | 93x209x65mm | 100-240Vac | 220W | 15VDC |
| TPS-15S-24 | 64x85x32mm | 100-240Vac | 15W | 24VDC |
| TPS-30S-24 | 79x87x37mm | 100-240Vac | 30W | 24VDC |
| TPS-50S-24 | 83x104x40mm | 100-240Vac | 50W | 24VDC |
| TPS-75S-24 | 96x135x40mm | 100-240Vac | 75W | 24VDC |
| TPS-100S-24 | 93x199x50mm | 100-240Vac | 100W | 24VDC |
| TPS-150S-24 | 93x209x65mm | 100-240Vac | 150W | 24VDC |
| TPS-220S-24 | 93x209x65mm | 100-240Vac | 220W | 24VDC |
| TPS-350S-24 | 93x209x65mm | 100-240Vac | 350W | 24VDC |
| TPS-450S-12 | 93x209x65mm | 100-240Vac | 450W | 12VDC |
| TPS-450S-24 | 93x209x65mm | 100-240Vac | 450W | 24VDC |

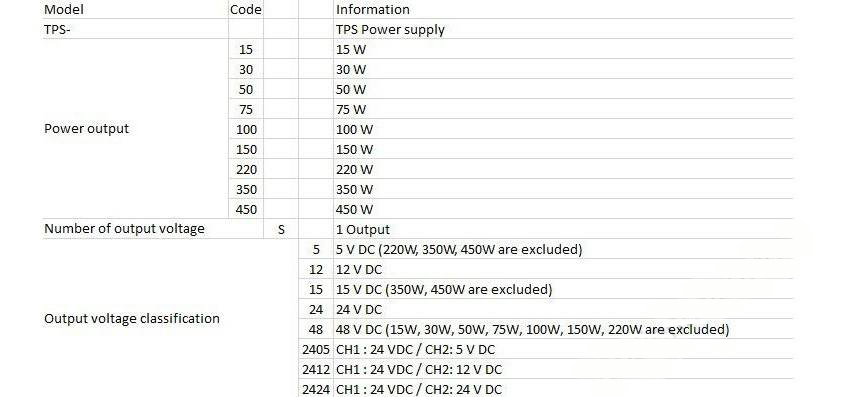

Cách lựa chọn bộ nguồn Hanyoung TPS Series
