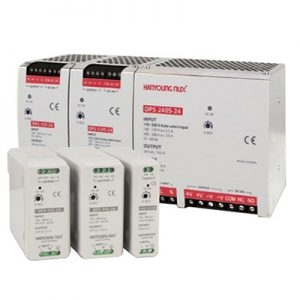

Bộ nguồn DÒNG SẢN PHẨM DPS – Din rail
Kích thước: 40 x 90 x103
Input: 100~240Vac ǁ Out: 50W/ 24VDC
Hanyoung DPS Series
| Mã sản phẩm | Kích thước | Điện áp ngõ vào | Điện áp ngõ ra | Công suất |
|---|---|---|---|---|
| DPS-15S-05 | 25x90 x103mm | 100-240Vac | 5VDC | 15W |
| DPS-30S-05 | 40x90 x103mm | 100-240Vac | 5VDC | 30W |
| DPS-50S-05 | 40x90 x103mm | 100-240Vac | 5VDC | 50W |
| DPS-15S-12 | 25x90 x103mm | 100-240Vac | 12VDC | 15W |
| DPS-30S-12 | 40x90 x103mm | 100-240Vac | 12VDC | 30W |
| DPS-50S-12 | 40x90 x103mm | 100-240Vac | 12VDC | 50W |
| DPS-75S-12 | 56x124 x98mm | 100-240Vac | 12VDC | 75W |
| DPS-100S-12 | 56x124 x98mm | 100-240Vac | 12VDC | 100W |
| DPS-120S-12 | 66x124 x98mm | 100-240Vac | 12VDC | 120W |
| DPS-240S-12 | 126x124x98mm | 100-240Vac | 12VDC | 240W |
| DPS-15S-15 | 25x90 x103mm | 100-240Vac | 15VDC | 15W |
| DPS-30S-15 | 40x90 x103mm | 100-240Vac | 15VDC | 30W |
| DPS-50S-15 | 40x90 x103mm | 100-240Vac | 15VDC | 50W |
| DPS-15S-24 | 25x90 x103mm | 100-240Vac | 24VDC | 15W |
| DPS-30S-24 | 40x90 x103mm | 100-240Vac | 24VDC | 30W |
| DPS-50S-24 | 40x90 x103mm | 100-240Vac | 24VDC | 50W |
| DPS-75S-24 | 56x124 x98mm | 100-240Vac | 24VDC | 75W |
| DPS-100S-24 | 56x124 x98mm | 100-240Vac | 24VDC | 100W |
| DPS-120S-24 | 66x124 x98mm | 100-240Vac | 24VDC | 120W |
| DPS-180S-24 | 66x124 x98mm | 100-240Vac | 24VDC | 180W |
| DPS-240S-24 | 126x124x98mm | 100-240Vac | 24VDC | 240W |
| DPS-75S-48 | 56x124 x98mm | 100-240Vac | 48VDC | 75W |
| DPS-100S-48 | 56x124 x98mm | 100-240Vac | 48VDC | 100W |
| DPS-120S-48 | 66x124 x98mm | 100-240Vac | 48VDC | 120W |
| DPS-180S-48 | 66x124 x98mm | 100-240Vac | 48VDC | 180W |
| DPS-240S-48 | 126x124x98mm | 100-240Vac | 48VDC | 240W |

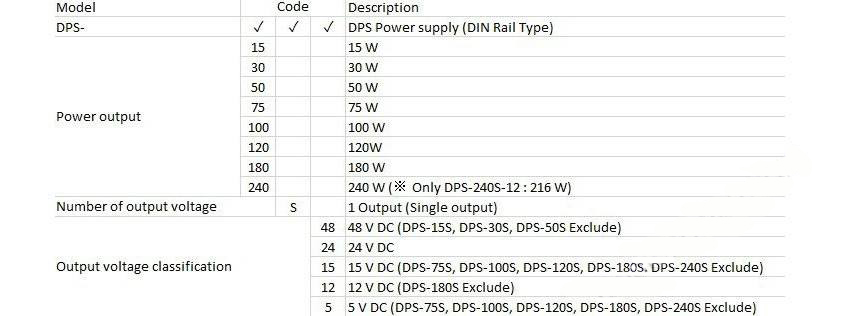

Cách lựa chọn Bộ nguồn Hanyoung DPS Series
