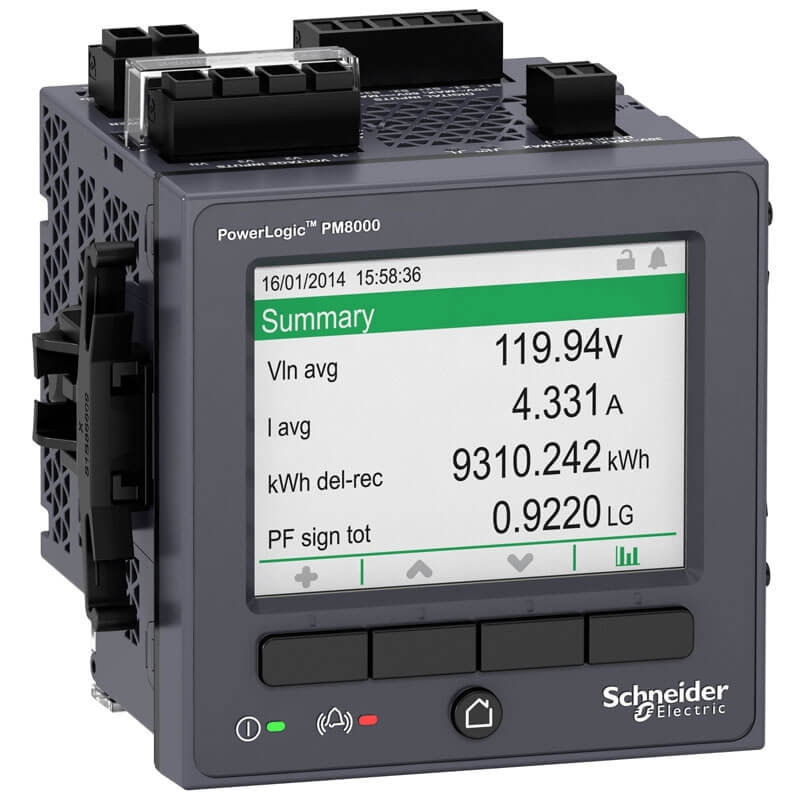

Đồng hồ đo điện đa năng Schneider PM8000 Series
- Dòng sản phẩm : Series PM8000 – Power Quality Meter
- Cấu hình sản phẩm : PM8000 Meter Class 0.2S, Analyze harmonic up to 63rd level Memory 512MB, IEC61850, Sag/Swell/Waveform capture
- Loại màn hình hiển thị : Colour TFT LCD; 320 x 240 pixels QVGA
- Kiểu đo : Apparent power, Active and reactive power, THD (I), THD (U), Apparent energy, Current, Voltage, Frequency, Power factor
- Loại mạng : 1P + N ; 3P ; 3P + N
- Nguồn cấp : 90...415 V AC 45...65 Hz +/- 10 % ; 110...415 V DC +/- 10 %
- Giao thức cổng giao tiếp : Modbus RTU at 115 kbauds - 2-wire ; ION at 115 kbauds - 2-wire ; DNP3; IEC 61850 ; Modbus TCP/IP ; Ethernet Modbus TCP/IP daisy chain at 10/100 Mbit/s ; RSTP 801.1d 2004
- Hỗ trợ cổng giao tiếp : Ethernet ; Screw terminal block: RS485
- communication service : SMTP e-mail notification ; RSTP support ; NTP time synchronization ; DHCP ; PTP time synchronization
- Kích thước : width 96mm - height 96mm - net weight 581g
Model Commercial reference Description
PM8240 METSEPM8240 Panel-mounted meter with integrated display
PM82401 METSEPM82401 Same as PM8240, except the meter is calibrated to comply to MID standards
PM8243 METSEPM8243 DIN rail-mounted meter without display, which can be connected to a remote display
PM8244 METSEPM8244 DIN rail-mounted meter packaged with a remote display
PM89RD96 METSEPM89RD96 Remote display (for DIN meter only)
PM89M2600 METSEPM89M2600 Digital I/O option module (2 out, 6 in)
PM89M0024 METSEPM89M0024 Analog I/O option module (2 out, 4 in)
PM8000SK METSEPM8000SK Voltage and current sealing kit
METSEPMAK METSEPMAK Mounting adapter kit for remote display and DIN meter
